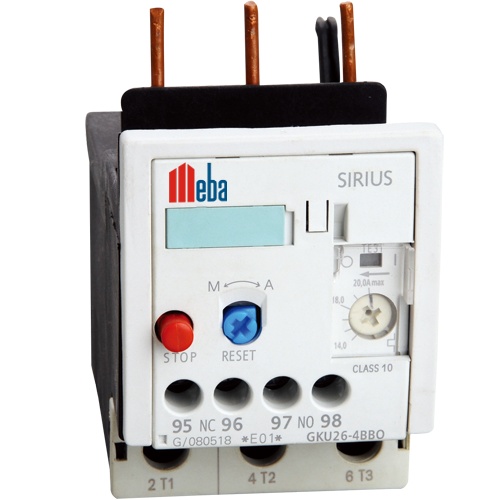

Based on the components we just covered, the overload thermal relay operates as follows.
• The bimetal heating coil emits heat when electricity passes through it. A continuous overload might eventually cause the bimetallic strip to expand and bend, depending on the set rating.
• This will exert pressure on the relay's trip lever, opening the usually closed connections while closing the typically open contacts.
